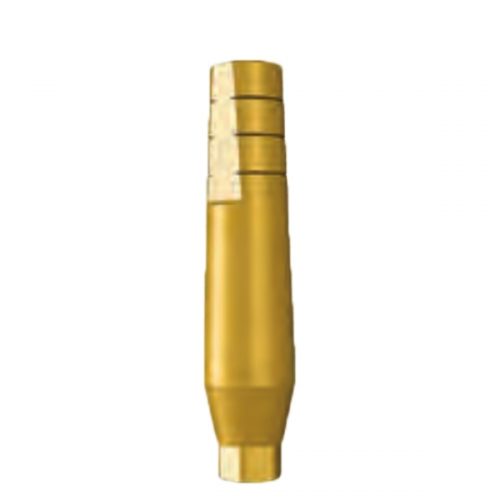

Bio3 Straight Abutment Wide – Standard Diameter 3.85mm Length 13mm

Description

Manufacturer: Bio3 Implants GmbH

Titanium Straight Abutment with standard diameter for wide platform (Internal Hex 2.5mm). It is installed using universal or hand prosthetic driver.

Available in the following diameters and lengths (see also ‘Related Products’ at the bottom of this page or click on the Product Codes below):-

PRODUCT CODE                DIAMETER               LENGTH

       GAB8                                3.35mm                   8.0mm

       GAB9                                3.35mm                   9.0mm

       GAB13                              3,35mm                 13.0mm

Implant System: Bio3 Advanced & Progressive Implants for Wide Platform

Diameter: 3.85mm

Internal Hex: 2.5mm

Length: 13mm

Full Length: 17mm

Material: Titanium Grade 5

Package; Each pack contains 1 Abutment + 1 Prosthetic Screw
