Bio3 Bio Line Healing Cap Incisor Type Wide – Width 5.0mm/6.0mm Length 4.0mm/6.35mm

Description

Manufacturer: Bio3 Implants GmbH

Anatomically designed Healing Cap (Incisor Type) for wide platform (Internal Hex 2.5mm). It is installed using universal or hand prosthetic insertion drivers.

• Anatomic design; Identical to the shape of natural teeth therefore formation of constant anatomic gingival volume
• No need for soft tissue transplantation after transplantation or tooth removal
• Embossed edges match the line of the gingival margin
• High precise implant-abutment connection

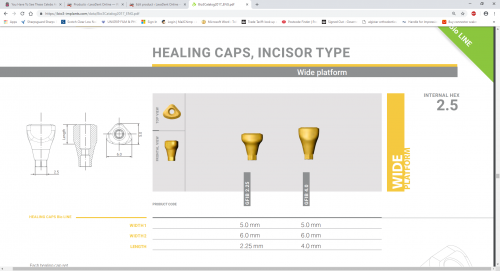

Available in the following widths and lengths (see also Related Products’ at the bottom of this page or click on the Product Codes below):-

PRODUCT CODE                Width 1               Width 2                 LENGTH               LENGTH 1

       GFIB2.25                      5.0mm                 6.0mm                    4.5mm                    2.25mm

       GFIB4.0                        5.0mm                 6.0mm                    6.35mm                   4.0mm

Implant System: Bio3 Advanced & Progressive Implants for Wide Platform

Internal Hex: 2.5mm

Width: 5mm width (1) and 6.0mm width (2)

Length: 6.35mm and 4.0mm length (1)

Material: Titanium Grade 5

Package; Each pack contains 1 Healing Cap + 1 Prosthetic Screw
